KHQ-P2000 Quartz Lamp Point Heater
Product Overview
The KHQ-P2000 Quartz Lamp Point Heater is a high-power localized thermal loading system designed for high-temperature materials research and engineering testing. The system utilizes a 2000 W short-wave quartz halogen infrared source, focusing radiant energy through a high-reflectivity metal cavity to achieve rapid heating in millimeter-to-centimeter-scale areas. Unlike traditional resistance furnaces that require extended warm-up times, this unit applies high heat flux directly to the target area without preheating. It is ideal for thermal shock, thermal cycling, material failure analysis, and thermo-mechanical coupling tests. The KHQ-P1000 model supports rapid localized heating and laboratory validation for smaller areas. The KHQ-P2000 offers enhanced power capacity, heat flux density, and high-temperature performance, making it better suited for larger thermal loads, steep temperature gradients, and engineering-grade testing. Both models feature a modular focusing structure configurable to match sample dimensions and test requirements.
Product Positioning
2000 W High-Power Focused Thermal Loading
The high-reflectivity metal focusing cavity concentrates short-wave infrared energy to rapidly heat millimeter-to-centimeter-scale regions and deliver high heat flux loads.
Engineering-grade Test Upgrade
Compared to KHQ-P1000, it delivers enhanced power reserve, heat flux density, and high-temperature capability, making it ideal for applications with higher thermal loads and steep temperature gradients.
Product Type
How it works
Quartz lamp point heaters generate high-temperature radiation using a tungsten filament inside a quartz tube, transferring energy to the sample via near-infrared short-wave radiation. Combined with a gold reflector cavity or high-reflectivity metal structures, energy efficiency is improved and heat is concentrated on the target area. Industrial-grade 2000 W quartz-halogen infrared elements typically feature short-wave infrared output around 1 μm, fast response times, and high power density, making them ideal for rapid thermal loading applications.
Actual temperature capability depends not only on power but also on material absorptivity, sample size, surface condition, environmental heat dissipation, reflector cavity design, and the measurement method. Each project requires a comprehensive design based on target temperature, ramp-up time, heating area, and test environment.
Important Notice:The maximum temperature capability of 1800～2000℃ is material- and condition-dependent, representing peak performance under focused, high-absorption scenarios. For formal projects, final specifications should be determined based on specific samples, agreed test conditions, and acceptance criteria.
Core Advantages
Construct a high heat flux point source using a 2000 W shortwave quartz halogen infrared heater and a high-reflectivity focusing cavity. Features second-level response, non-contact loading, closed-loop temperature control, and integration for engineering testing.
2000 W High-Power Output
Delivers higher heat flux than the 1000 W point heater, suitable for larger sizes or higher temperature requirements.
Fast Response
Quartz halogen infrared sources feature second-level response, ideal for dynamic temperature change testing.
Focused local heating
Achieves energy concentration and reduces thermal impact on surrounding areas through reflector cavity design.
Contactless loading
Avoids mechanical contact interference; ideal for precision material testing
Closed-loop temperature control
Supports infrared thermometry, thermal imaging, and thermocouple feedback control.
Modular design
Integrates with test machines, motion platforms, and automation systems
Customizable
Supports customization of spot size, focal length, interface, and mounting structure
Key Technical Specifications
| Product Model | KHQ-P2000 |
| Heat Source Type | Quartz Halogen Infrared Lamp |
| Rated Power | 2000 W |
| Heating Method | Focused spot heating |
| Operating Band | Short-wave infrared (typically 0.8–1.5 μm) |
| Effective Spot | Approx. 10–20 mm, customizable |
| Maximum Temperature Rating | Typical reachability: 1800 to 2000°C (material and operating conditions dependent) |
| liquid cooling | Instant response in milliseconds |
| Cooling Method | Air-cooled or liquid-cooled options available |
| Power Requirements | AC 380 V or AC 220 V (depending on configuration) |
| Temperature Measurement Method | Infrared thermometers, thermocouples, thermal imaging cameras |
| Control Mode | Power Closed-Loop / PID Program Control |
| Custom Services | Focal length, reflector cavity, mechanical interface, control system |
Front View and Dimensions

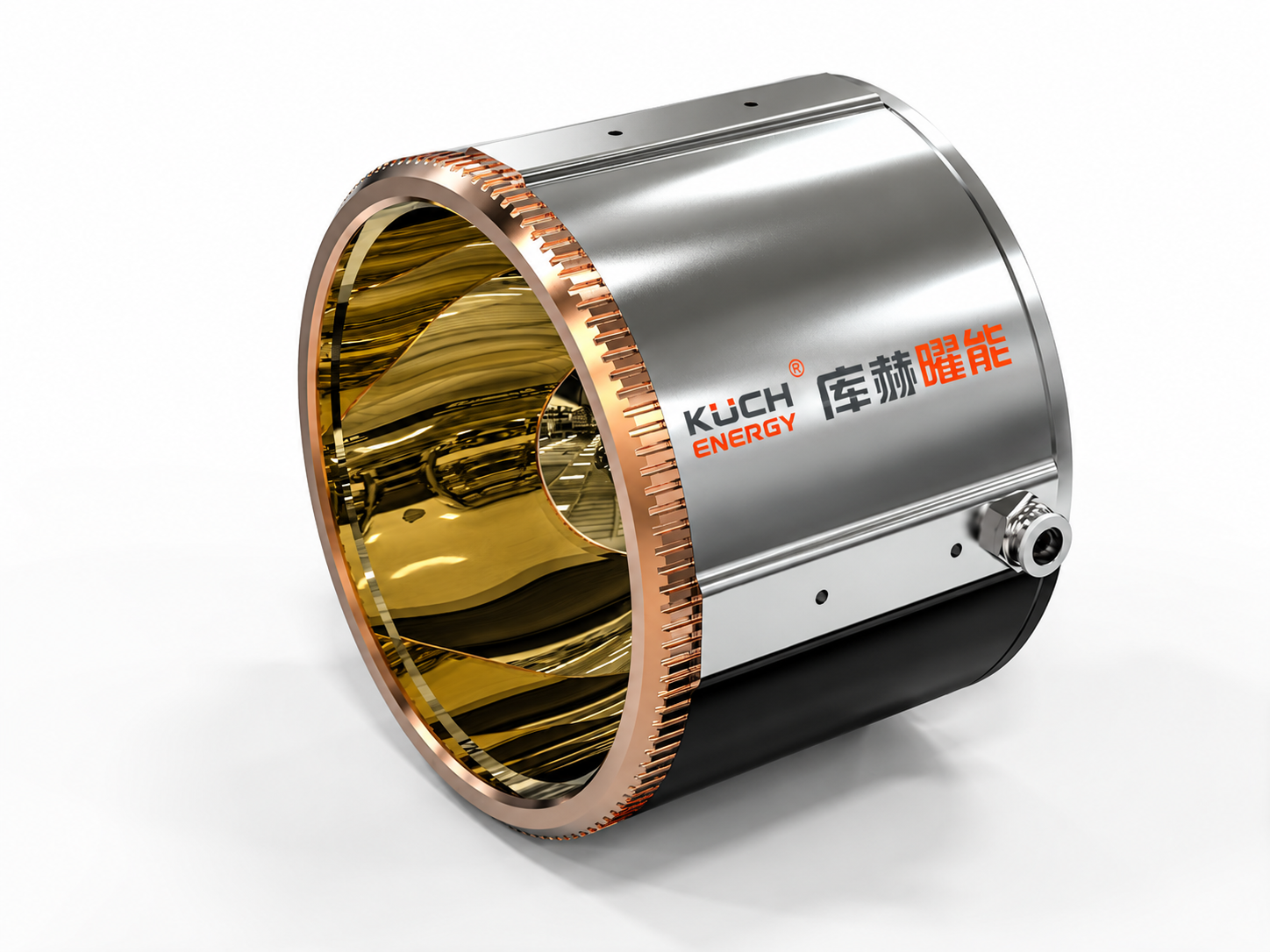

Front View

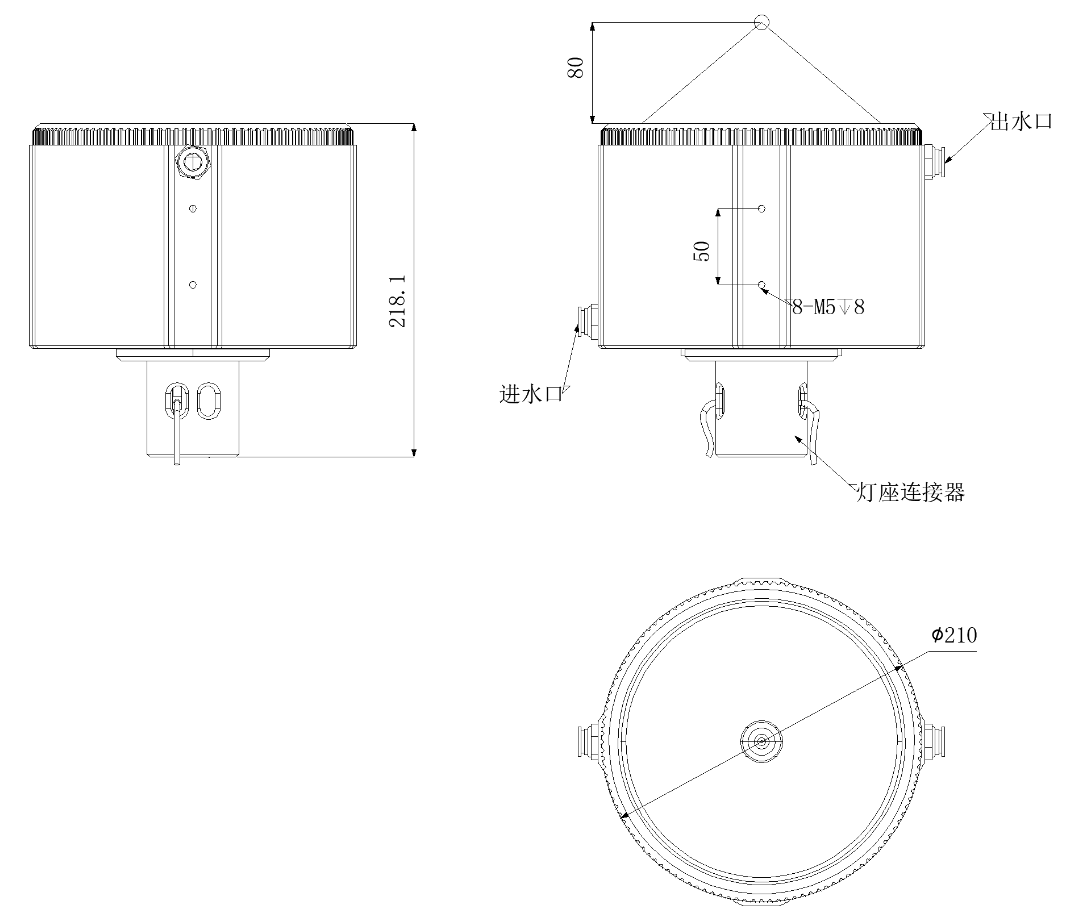

Product Dimensions
Typical Applications
Aerospace Materials
Thermal response testing for superalloys, ceramic matrix composites, and thermal barrier coatings
Thermal Shock and Thermal Cycling Test
Quickly create localized high-temperature zones
Thermo-mechanical coupling experiment
Integrate with tensile, fatigue, and creep testing equipment
Welding and Joining Processes
Local preheating and auxiliary heating
Additive Manufacturing
Local preheating, thermal stress control
Research Platform
Thermophysical properties, failure mechanisms, and temperature field analysis of materials
System Configuration and Control Mode
| Configuration Type | Typical Components | Use Cases |
|---|---|---|
| Basic Power Regulation | Focusing heating head, power controller, cooling assembly, mounting bracket | Process exploration, rapid heating, and experiments with low constant-temperature precision requirements. |
| Closed-loop temperature control | Basic Configuration + Thermocouple or Infrared Temperature Sensor + PID Controller | Target temperature control, heat preservation, over-temperature protection, and repeatability testing |
| Automated Integration Suite | Closed-loop system + 3-axis platform/robotic arm + data acquisition and host computer | Multi-point switching, scan heating, test process linkage, and automatic recording |
Selection Details & Customization Services
Product power, focal length, and control method should be determined jointly based on the sample and test objectives. Before selection, clarify the following information to ensure the spot size, heating rate, and temperature stability meet actual operating conditions:
- Sample material, dimensions, thickness, weight, and surface condition
- Heated zone dimensions, target temperature, allowable ramp-up time, and hold time
- Temperature fluctuation, repeatability, measurement accuracy, and whether temperature curve logging is required
- Fixed-point scanning, multi-position switching, or mobile scanning
- Installation space, working distance, fixture interference, and cooling and safety protection conditions
Available Customizations
- Different power outputs, focal lengths, and target spot sizes
- Fixed, adjustable-angle, or three-axis movable mounting structures
- Thermocouple, Infrared Thermometry, and Dual-Point Verification Solution
- PID closed-loop temperature control, programmable temperature ramping, hold function, and over-temperature protection
- Temperature, Power, and Alarm Data Collection and Export
- Integrate with test machines, robotic arms, fixtures, and automation platforms
Usage and Safety Instructions
- ⚠Strong visible and infrared radiation is emitted during operation. Do not look directly at the light source or focus area. Use appropriate eye and radiation protection equipment.
- ⚠The sample, heating head tip, and surrounding structures may be hot. Install heat guards and allow adequate cooldown time after power-off.
- ⚠Keep the air-cooled channel clear. Do not operate continuously if cooling is abnormal, the reflector surface is contaminated, or electrical connections are loose.
- ⚠Infrared temperature readings are affected by emissivity, angle, and spot size coverage. For highly reflective metals, combine with thermocouples or use a calibrated measurement solution.
- ⚠For adhesives, coatings, and materials that may emit volatiles, evaluate ventilation, smoke extraction, and fire safety conditions.
Product Value
The 2000 W shortwave quartz halogen infrared heat source concentrates energy via a high-reflectivity focusing cavity, delivering high heat flux to the target area without furnace preheating. Ideal for thermal shock, thermal cycling, material failure analysis, and thermo-mechanical coupling tests.
