KHQ-V1800 Quartz Lamp Heating System
Product Overview
KHQ-V1800 Quartz Lamp Heating System is a modular infrared radiation heating solution designed for high-temperature material testing, heat treatment research, and thermal response evaluation. The system uses multiple quartz infrared lamps as the radiation source, coupled with a high-reflectivity focusing structure to concentrate infrared energy for rapid heating of entire sample areas or specific zones. Unlike traditional resistance furnaces that heat the entire chamber, quartz lamp radiation offers fast thermal response, low thermal inertia, and supports rapid temperature cycling. It is ideal for applications such as dynamic thermal loading, thermal shock, thermal fatigue, and material performance evaluation. By leveraging infrared radiation from quartz lamps within a metal reflector cavity, the system controls direction and concentrates energy to directly target the sample surface, minimizing heat conduction through fixtures. Configuration can be customized based on material absorption characteristics and process requirements.
Product Positioning
Modular infrared radiator heating
Multiple sets of quartz infrared lamps and high-reflectivity concentrator structures focus energy to rapidly heat the entire sample or specific areas.
Rapid Thermal Cycling Platform
Fast thermal response and low thermal inertia, ideal for dynamic thermal loading, thermal shock, thermal fatigue, and material performance evaluation.
Product Type
How it works
The system uses infrared radiation from quartz IR lamps, directing and concentrating energy via a metal reflector cavity. Unlike contact heating, IR radiation acts directly on the sample surface, minimizing heat transfer through fixtures. Industrial IR modules typically integrate quartz emitters, reflectors, and temperature feedback control into a complete heating unit, customizable based on material absorption characteristics and process requirements.
Actual temperature capability depends on sample size, material absorptivity, surface condition, heat loss conditions, and reflector cavity design. In engineering applications, comprehensive design must account for target temperature, heating time, heat flux density, and test boundary conditions.
Important Notice:The temperature range 300–1500°C, control accuracy of ±2°C, and heating rate of 10–100°C/s depend on the material and operating conditions. The specified control accuracy is achievable only under closed-loop temperature measurement. Final project specifications shall be based on agreed test conditions and acceptance criteria.
Core Advantages
A modular body heating system built with multiple quartz infrared lamp arrays and high-reflectivity concentrators, delivering high heat flux density and rapid temperature cycling. Supports independent multi-zone temperature control with closed-loop precision regulation.
High heat flux output
Multi-lamp array structure delivers higher heat input per unit area.
Rapid heating and cooling
Quartz infrared lamps feature fast response times, making them ideal for dynamic thermal cycling processes.
Contactless heating
Minimize fixture impact and prevent mechanical contact contamination
Zoned Temperature Control
Supports independent multi-zone control for precise temperature field adjustment.
Reflector Focus Design
Utilize high-reflectivity metal structures to enhance energy efficiency
Modular Structure
Easily adjust the number and layout of light modules based on sample dimensions.
Supports closed-loop control
Achieve precise temperature control by integrating infrared thermometers, thermal imagers, and thermocouples.
Modular design
Supports connection to test machines, motion platforms, and automated equipment.
Key Technical Specifications
| Product Model | KHQ-V1800 |
| Heat Source Type | Quartz Infrared Lamp |
| Output Power | 1800 W (customizable upon request) |
| Heating Method | Multi-lamp array radiant heating |
| Radiation Band | Infrared (typical range 0.8–3 μm) |
| Effective heating zone | φ150～200 mm (customizable) |
| Temperature Range | 300～1500°C (varies by material and operating conditions) |
| Temperature Control Accuracy | ±2°C (with closed-loop temperature measurement configured) |
| Heating rate | 10 to 100°C/s (varies by sample and configuration) |
| Temperature Measurement Method | Infrared Thermometer / Thermocouple / Thermal Imager |
| Control Mode | PID closed-loop control |
| Cooling Method | Air-cooled or liquid-cooled options available |
| Power Requirements | AC 220 V / 380 V |
| Custom Services | Light module layout, reflector cavity, interfaces, and control system |

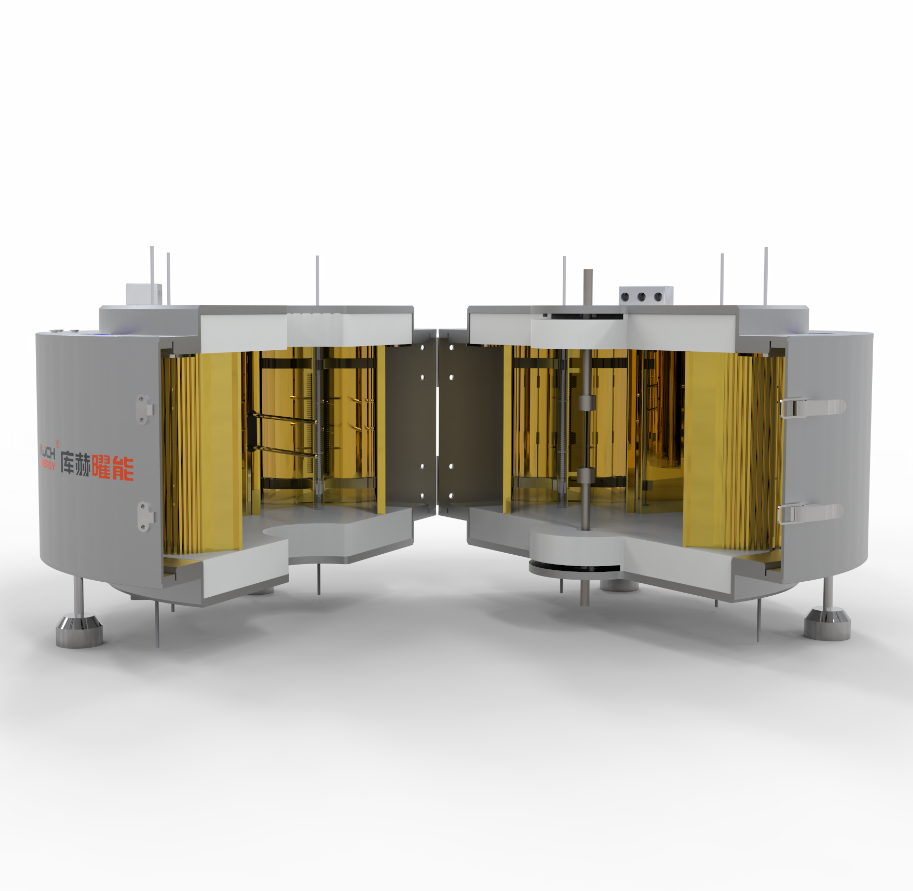

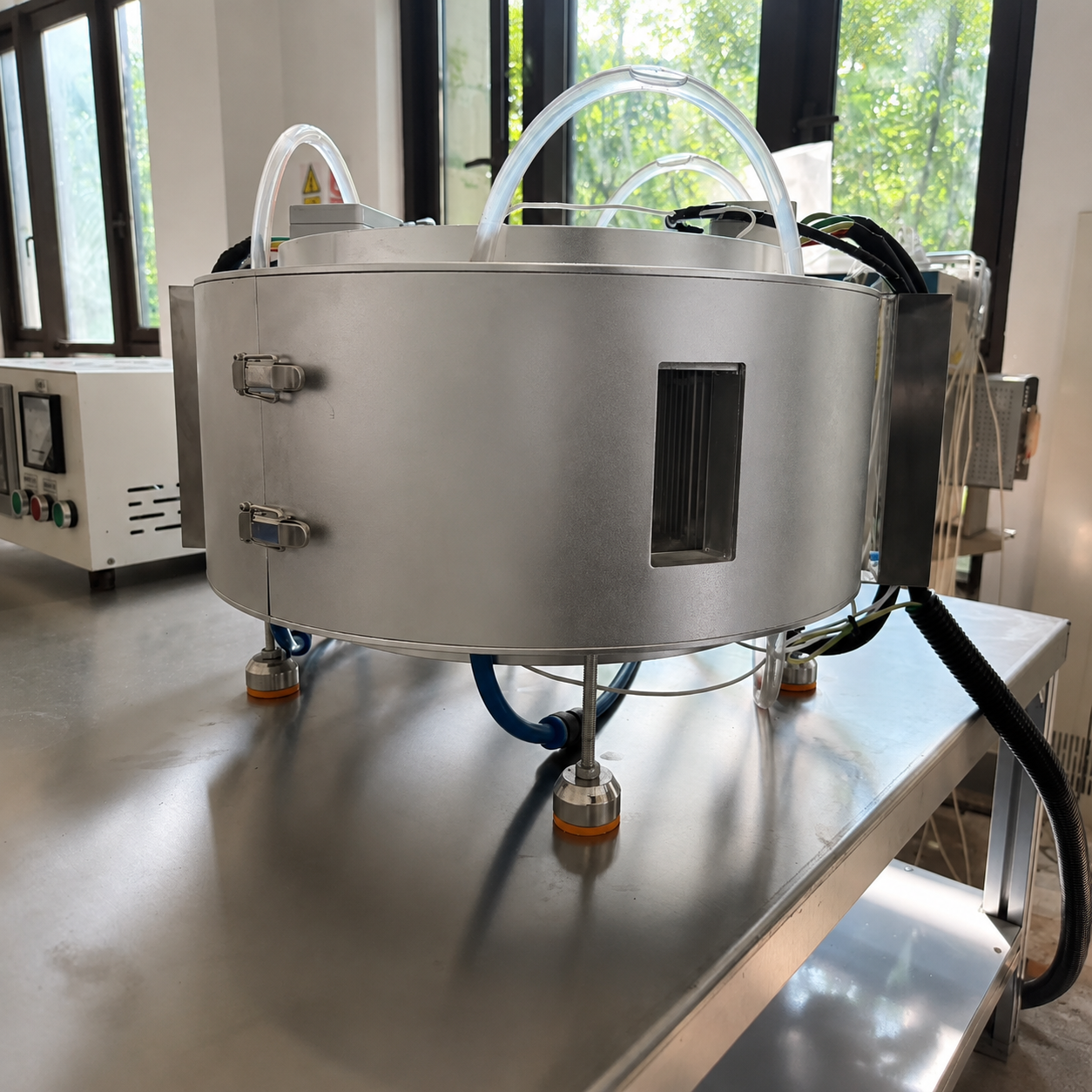

Product Detail Images and Actual Product Photos
Product Details
Product Image
Typical Applications
Aerospace Materials
Thermal cycling tests for superalloys, ceramic matrix composites, and thermal barrier coatings
Thermal Shock and Thermal Fatigue Testing
Simulate rapid temperature changes
Additive Manufacturing
Preheat and thermal stress control during printing
Material Heat Treatment
Study on Local Annealing, Preheating, and Heat Treatment Processes
Electronics & Semiconductors
Substrate, Packaging, and Functional Material Heat Treatment
Research Testing Platform
Research on Thermal Properties, Thermal Response, and Failure Mechanisms of Materials
System Configuration and Control Mode
| Configuration Type | Typical Components | Use Cases |
|---|---|---|
| Basic Power Regulation | Focusing heating head, power controller, cooling assembly, mounting bracket | Process exploration, rapid heating, and experiments with low constant-temperature precision requirements. |
| Closed-loop temperature control | Basic Configuration + Thermocouple or Infrared Temperature Sensor + PID Controller | Target temperature control, heat preservation, over-temperature protection, and repeatability testing |
| Automated Integration Suite | Closed-loop system + 3-axis platform/robotic arm + data acquisition and host computer | Multi-point switching, scan heating, test process linkage, and automatic recording |
Selection Details & Customization Services
Product power, focal length, and control method should be determined jointly based on the sample and test objectives. Before selection, clarify the following information to ensure the spot size, heating rate, and temperature stability meet actual operating conditions:
- Sample material, dimensions, thickness, weight, and surface condition
- Heated zone dimensions, target temperature, allowable ramp-up time, and hold time
- Temperature fluctuation, repeatability, measurement accuracy, and whether temperature curve logging is required
- Fixed-point scanning, multi-position switching, or mobile scanning
- Installation space, working distance, fixture interference, and cooling and safety protection conditions
Available Customizations
- Different power outputs, focal lengths, and target spot sizes
- Fixed, adjustable-angle, or three-axis movable mounting structures
- Thermocouple, Infrared Thermometry, and Dual-Point Verification Solution
- PID closed-loop temperature control, programmable temperature ramping, hold function, and over-temperature protection
- Temperature, Power, and Alarm Data Collection and Export
- Integrate with test machines, robotic arms, fixtures, and automation platforms
Usage and Safety Instructions
- ⚠Strong visible and infrared radiation is emitted during operation. Do not look directly at the light source or focus area. Use appropriate eye and radiation protection equipment.
- ⚠The sample, heating head tip, and surrounding structures may be hot. Install heat guards and allow adequate cooldown time after power-off.
- ⚠Keep the air-cooled channel clear. Do not operate continuously if cooling is abnormal, the reflector surface is contaminated, or electrical connections are loose.
- ⚠Infrared temperature readings are affected by emissivity, angle, and spot size coverage. For highly reflective metals, combine with thermocouples or use a calibrated measurement solution.
- ⚠For adhesives, coatings, and materials that may emit volatiles, evaluate ventilation, smoke extraction, and fire safety conditions.
Product Value
Multiple quartz infrared lamps, focused by a high-reflectivity structure, rapidly heat the entire sample or specific areas. Paired with multi-zone independent temperature control and PID closed-loop feedback, this system is ideal for high-temperature material testing, heat treatment research, and thermal response evaluation.
